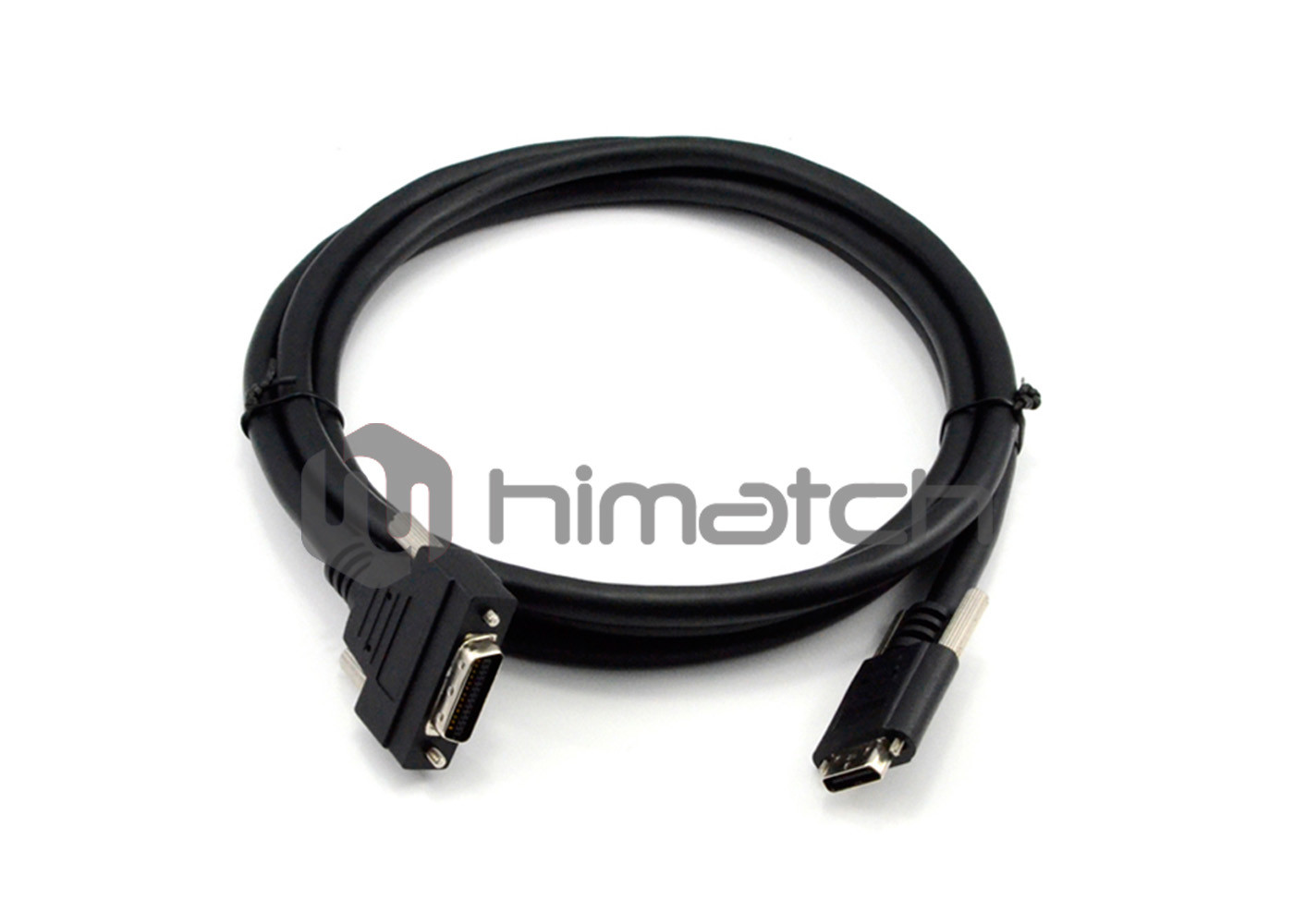

Camera Link Cable AIA standard MDR 26pos to MDR 26pos Vision Cable Assembly
Description:
Camera Link Machine Vision Cable Manufacturer from China, we provide high quality aia standard pocl (power over Camera Link) Cable,They offer outstanding quality, durability, and high performance for industrial CCD camera with SDR or MDR port.The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.Camera Link Configuration : In Full and Medium mode , use 2 wires
Specification:
| Standard | Camera Link | Transmit Speed Max | 2.04Gpbs |
| Installation mode | Dynamic /Static | Install radius (Min) | 75mm |
| Wire gauge | 28AWG | Cable OD | 9.1mm |
| Jacket Material | PVC | Connector | MDR-MDR |
| Operation Temperature | -20°C ~+ 80°C | Max Length | 15m |
.
Features
Real-time signals transmission,low latency
100% electronically tested for functionality
Low noise and good performance in skew
Shielded pairs provide superior signal integrity
Overall foil and braid shielded provides EMI/RFI protection
Flexible and reliable cable
Application
Industrial imaging
Machine Vision system
Industrial camera
Scanning on pipelining
Products testing
Image recognition
Factory automation
Note
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
